‹ Home › Inventory › SXS10M5DTS 2025 Pioneer 1000-5 Trail Special Edition

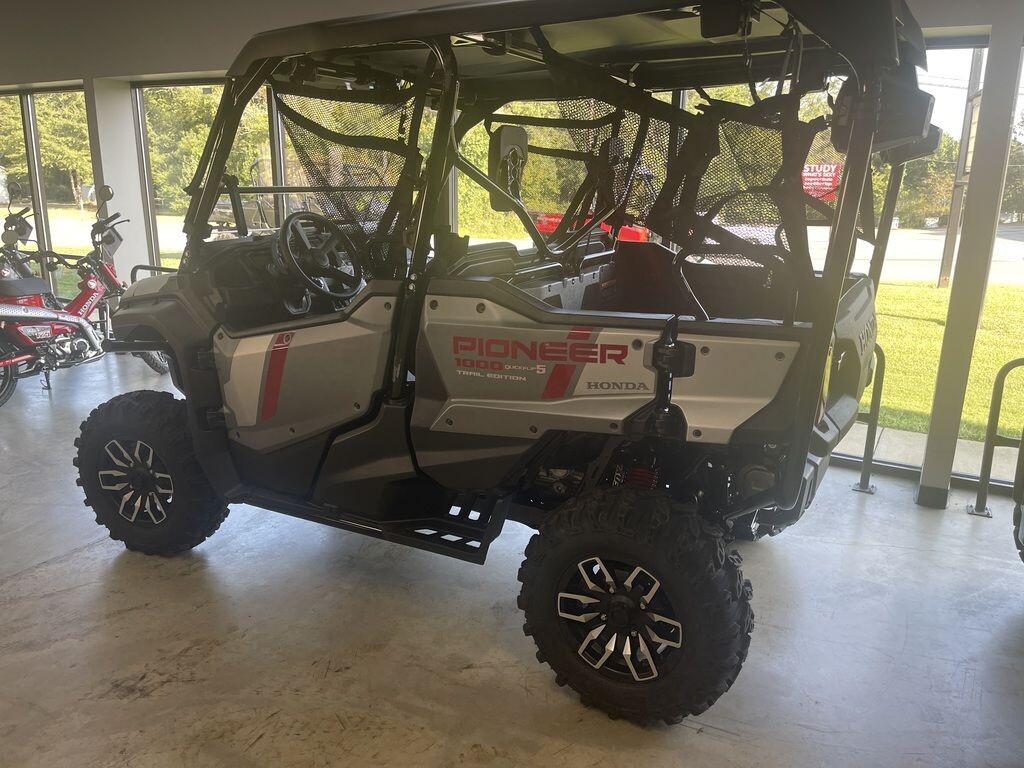

2025 Honda® Pioneer 1000-5 Trail Special EditionVersatility is its virtue Versatility and a do-it-all attitude—that's what the Pioneer 1000-5 is all about. QuickFlip seats let you carry up to five people and fold flat for carrying cargo. The 999cc engine and automatic DCT transmission are an unbeatable combo. Three trims—including our new Special Edition this year—make it easy to pick one that’s perfect for you. Features may include: 4,500-Pound Warn WinchBlack Aluminum Wheels with Contrast-Cut HighlightsFOX QS-3 Quick-Adjust SuspensionRearview MirrorAudio SystemFully automatic six-speed DCT With the industry’s first six-speed Dual-Clutch Transmission (DCT), you can choose between manual mode or fully automatic. There’s even an easy-to-use tow/haul mode, along with 2WD, 4WD, Differential Lock, and Turf selections. QuickFlip® seating A Honda exclusive, two QuickFlip® seats in the cargo bed open easily and fold flat when not in use. Powerful 999cc twin-cylinder engine With plenty of power—especially in the midrange and top end—you'll experience quick acceleration and exceptional overall performance.

Specifications

Engine

add remove
- Engine Type:

  Parallel Twin
- Engine:

  Standard
- Cylinders:

  2
- Engine Stroke:

  4-Stroke
- Cooling:

  Liquid
- Valves:

  8
- Valves Per Cylinder:

  4
- Valve Configuration:

  SOHC
- Bore (mm):

  92
- Bore (in):

  3.62
- Stroke (mm):

  75.1
- Stroke (in):

  2.96
- Displacement (cc):

  999
- Displacement (ci):

  60.9
- Starter:

  Electric
- Fuel Type:

  Gas
- Fuel Requirements:

  Regular
- Carburetion:

  Standard
- Fuel Injector:

  Yes
- Fuel Injector Size (mm):

  44
- Carburetor:

  No
- Carburetion Type:

  Fuel Injected
- Parental Controls:

  Not Available
- Snorkel Air Intake:

  Not Available
- Engine Block Heater:

  Not Available
- Speed Governor:

  No
- Other Engine:

  Not Available
- Compression Ratio:

  10:1
TRANSMISSION

add remove
- Transmission:

  Standard
- Transmission Type:

  Manual / Automatic Clutch
- Number Of Speeds:

  6
- Hi / Low Range:

  Yes
- Primary Drive (Rear Wheel):

  Shaft
- Primary Drive (Front Wheel):

  Shaft
- Reverse:

  Yes
- Adjustable Throttle:

  Not Available
- Other Transmission:

  Not Available
DRIVE LINE

add remove
- Driveline:

  Standard
- Driveline Type:

  Selectable 4X2 / 4X4
- Number Of Driveline Modes:

  4
- Rear Solid Axle:

  No
- Limited Slip Differential:

  Not Available
- Differential Lock:

  Standard
- Differential Lock Location:

  Front / Rear
- Other Drive Line:

  Not Available
TECHNICAL SPECIFICATIONS

add remove
- Dimensions:

  Standard
- Length (mm):

  3027.7
- Width (in):

  63
- Width (mm):

  1600.2
- Height (in):

  76.5
- Height (mm):

  1943.1
- Wheelbase (in):

  80.2
- Wheelbase (mm):

  2037.1
- Turning Radius (ft):

  13.8
- Ground Clearance (in):

  12.2
- Ground Clearance (mm):

  309.9
- Weight:

  Standard
- Towing Capacity (lbs):

  2500
- Towing Capacity (kgs):

  1134
- Capacities:

  Standard
- Fuel Capacity (gal):

  7.9
- Fuel Capacity (l):

  29.9
- Fuel Capacity Reserve (gal):

  1.7
- Fuel Capacity Reserve (l):

  6.4
- Performance:

  Standard
- Payload Capacity (lbs):

  1000
- Payload Capacity (kgs):

  453.6
- Wet Weight (lbs):

  1777
- Wet Weight (kg):

  806
SUSPENSION

add remove
- Front Suspension:

  Standard
- Front Suspension Type:

  Independent Double Wishbone
- Front Travel (in):

  10.6
- Front Travel (mm):

  268
- Rear Suspension:

  Standard
- Rear Suspension Type:

  Independent Double Wishbone
- Rear Suspension Material:

  Steel
- Rear Travel (in):

  10
- Rear Travel (mm):

  254
- Number Rear Shock Absorbers:

  2
- Rear Stabilizer Bar:

  Yes
- Air Adjustable:

  No
- Center Suspension:

  Not Available
- Front Adjustable Fork Pre-Load:

  Yes
- Rear Adjustable Shock / Spring Pre-Load:

  Yes
- Other Suspension:

  Not Available
- Front Suspension Brand Name:

  Fox®
- Rear Suspension Brand Name:

  Fox®
WHEELS & TIRES

add remove
- Wheels:

  Standard
- Wheels Composition:

  Aluminum
- Front Tire Diameter (in):

  27
- Rear Tire Diameter (in):

  27
- Wheel Weights:

  Not Available
- Tires:

  Standard
- Front Tire Width:

  9
- Front Wheel Diameter:

  14
- Rear Tire Width:

  11
- Rear Wheel Diameter:

  14
- Front Tire (Full Spec):

  Armstrong Dirt Master 2.0: 27 x 9-14
- Rear Tire (Full Spec):

  Armstrong Dirt Master 2.0: 27 x 11-14
- Tire Chains:

  Not Available
- Spare Tire:

  Not Available
- Tire Brand:

  Armstrong
- Other Wheels & Tires:

  Not Available
BRAKES

add remove
- Brakes:

  Standard
- Front Brake Type:

  Hydraulic Disc
- Front Brake Diameter (in):

  8.3
- Front Brake Diameter (mm):

  210
- Rear Brake Type:

  Hydraulic Disc
- Rear Brake Diameter (in):

  8.3
- Rear Brake Diameter (mm):

  210
- Anti-Lock Brakes:

  Not Available
- Parking Brake:

  Standard
- Engine Braking:

  Standard
- Regenerative Braking:

  Not Available
- Regenerative Deceleration:

  Not Available
- Linked Brake System Front to Rear:

  Not Available
- Other Brakes:

  Not Available
