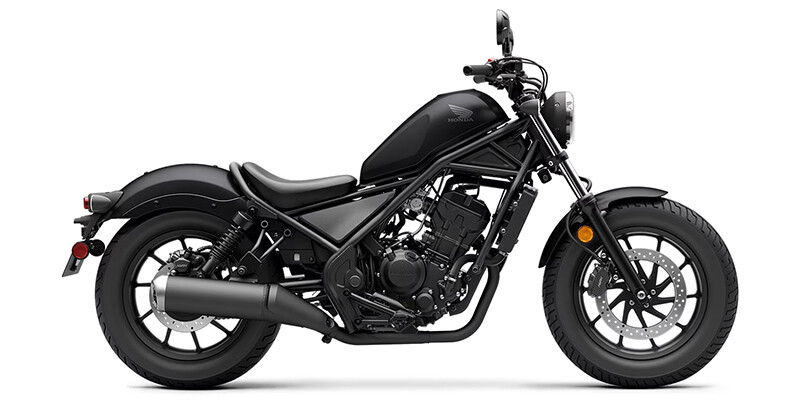

2025 Rebel^® 300

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    4
  • Valves Per Cylinder
    4
  • Valve Configuration
    DOHC
  • Bore (in)
    2.99
  • Stroke (in)
    2.48
  • Displacement (cc)
    286
  • Carburetion Type
    Fuel Injected
  • Turbocharged
    No
  • Supercharged
    No
  • Number Of Carburetors
    0
  • US Miles Per Gallon (Combined)
    78
  • Compression Ratio
    10.7:1
• TRANSMISSION

  add remove
  • Transmission Type
    Manual
  • Number Of Speeds
    6
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
  • Gear Ratio (1)
    3.42
  • Gear Ratio (2)
    2.25
  • Gear Ratio (3)
    1.65
  • Gear Ratio (4)
    1.35
  • Gear Ratio (5)
    1.17
  • Gear Ratio (6)
    1.04
• TECHNICAL SPECIFICATIONS

  add remove
  • Wheelbase (in)
    58.6
  • Fuel Capacity (gal)
    3
  • Length (in)
    86.8
  • Width (in)
    31.8
  • Height (in)
    42.9
  • Ground Clearance (in)
    5.9
  • Wet Weight (lbs)
    364
• SUSPENSION

  add remove
  • Front Suspension Type
    Telescopic Fork
  • Front Suspension Size (in)
    1.6
  • Front Travel (in)
    4.8
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Steering Damper
    No
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Suspension Material
    Steel
  • Rear Travel (in)
    3.7
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    2
  • Air Adjustable
    No
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Front Tire (Full Spec)
    Dunlop® 130/90-16 67H
  • Rear Tire (Full Spec)
    Dunlop® 150/80-16 71H
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Hydraulic Disc
  • Front Brake Diameter (in)
    11.7
  • Rear Brake Type
    Hydraulic Disc
  • Rear Brake Diameter (in)
    9.4
  • Anti-Lock Brakes
    Not Available
  • Linked Brake System Front to Rear
    Not Available
• Color options

  add remove
  • Mat Black Metallic
