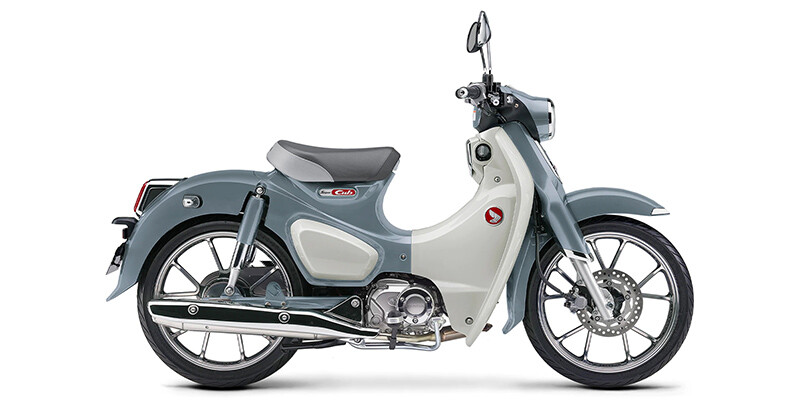

2024 Super Cub C125 ABS

2024 Super Cub C125 ABS

Find out more

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Cooling
      Air
    • Valves
      2
    • Valves Per Cylinder
      2
    • Valve Configuration
      SOHC
    • Bore (in)
      1.97
    • Stroke (in)
      2.48
    • Displacement (cc)
      124
    • Carburetion Type
      Fuel Injected
    • Turbocharged
      No
    • Supercharged
      No
    • Number Of Carburetors
      0
    • Bore And Stroke
      50.0mm x 63.1mm
    • Induction
      PGM-FI; 24mm throttle body
    • Compression Ratio
      10.0:1
    • Valve Train
      SOHC; two valves per cylinder
    • Final Drive
      #420 Chain; 14T/35T
    • Transmission
      Four-speed semi-automatic
  • Chassis/ Suspension/ Brake
    add remove
    • Front Suspension
      Single 220mm hydraulic disc; ABS
    • Rear Suspension
      110mm mechanical drum
    • Front Tire
      70/90-17
    • Rear Tire
      80/90-17
  • Dimensions
    add remove
    • Rake
      26°
    • Trail
      2.8 inches
    • Wheelbase
      48.9 inches
    • Seat Height
      30.7 inches
    • Curb Weight
      238 pounds (Includes all standard equipment, required fluids and full tank of fuel—ready to ride)
    • Fuel Capacity
      1.0 gallon
  • Other
    add remove
    • Emissions
      Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.
  • Factory Warranty Information
    add remove
    • One Year Included
      Unlimited-mileage, limited warranty
    • Optional Extended
      Extended coverage available with a HondaCare® Protection Plan
  • TRANSMISSION
    add remove
    • Transmission Type
      Manual / Automatic Clutch
    • Number Of Speeds
      4
    • Primary Drive (Rear Wheel)
      Chain
    • Reverse
      No
    • Gear Ratio (1)
      2.5
    • Gear Ratio (2)
      1.55
    • Gear Ratio (3)
      1.15
    • Gear Ratio (4)
      0.92
  • TECHNICAL SPECIFICATIONS
    add remove
    • Wheelbase (in)
      49
    • Fuel Capacity (gal)
      1
    • Length (in)
      75.2
    • Width (in)
      28.9
    • Height (in)
      39.4
    • Ground Clearance (in)
      5.4
    • Wet Weight (lbs)
      238
  • SUSPENSION
    add remove
    • Front Suspension Type
      Inverted Fork
    • Front Suspension Size (in)
      1
    • Front Travel (in)
      3.5
    • Front Adjustable Fork Pre-Load
      No
    • Front Adjustable Rebound Damping
      No
    • Front Central Suspension Strut
      No
    • Steering Damper
      No
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Rear Suspension Material
      Steel
    • Rear Travel (in)
      3.6
    • Rear Adjustable Shock / Spring Pre-Load
      No
    • Rear Adjustable Rebound Damping
      No
    • Number Rear Shock Absorbers
      2
    • Air Adjustable
      No
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Aluminum
    • Chromed
      No
    • Tube / Tubeless
      Tubeless
    • Front Tire (Full Spec)
      IRC: 70/90-17 M/C 38P
    • Rear Tire (Full Spec)
      IRC: 80/90-17 M/C 50P
    • Spare Tire
      Not Available
  • BRAKES
    add remove
    • Front Brake Type
      Hydraulic Disc
    • Front Brake Diameter (in)
      8.7
    • Rear Brake Type
      Drum
    • Rear Brake Diameter (in)
      4.3
    • Anti-Lock Brakes
      Standard
    • Linked Brake System Front to Rear
      Not Available
  • Color options
    add remove
    • Pearl Gray
    • Pearl Niltava Blue
