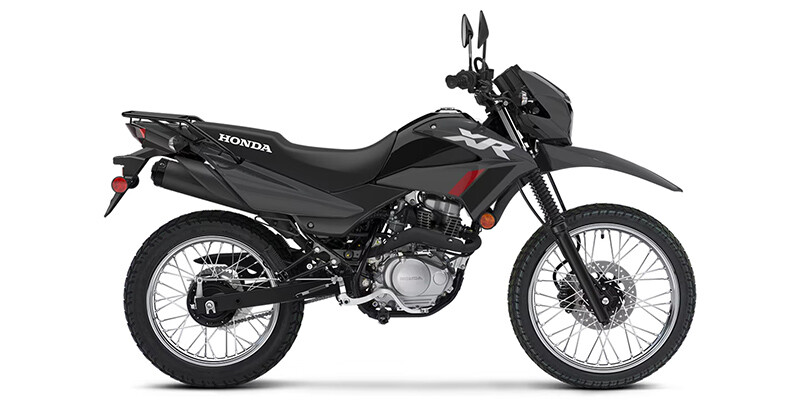

2025 XR150L

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Air
  • Valves
    4
  • Valves Per Cylinder
    4
  • Valve Configuration
    SOHC
  • Bore (in)
    2.26
  • Stroke (in)
    2.28
  • Displacement (cc)
    149
  • Carburetion Type
    Carburetor
  • Turbocharged
    No
  • Supercharged
    No
  • Number Of Carburetors
    1
  • Compression Ratio
    9.5:1
• TRANSMISSION

  add remove
  • Transmission Type
    Manual
  • Number Of Speeds
    5
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Wheelbase (in)
    53.5
  • Fuel Capacity (gal)
    2.8
  • Fuel Capacity Reserve (gal)
    0.7
  • Length (in)
    81.7
  • Width (in)
    31.9
  • Height (in)
    44.5
  • Ground Clearance (in)
    9.6
  • Wet Weight (lbs)
    282
• SUSPENSION

  add remove
  • Front Suspension Type
    Telescopic Fork
  • Front Suspension Size (in)
    1.2
  • Front Travel (in)
    7.1
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Steering Damper
    No
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Suspension Material
    Aluminum
  • Rear Travel (in)
    5.9
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    1
  • Rear Suspension Brand Name
    Pro Link®
  • Air Adjustable
    No
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Steel
  • Chromed
    No
  • Tube / Tubeless
    Tubed
  • Front Tire (Full Spec)
    90/90-19
  • Rear Tire (Full Spec)
    110/90-17
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Hydraulic Disc
  • Front Brake Diameter (in)
    9.4
  • Rear Brake Type
    Drum
  • Rear Brake Diameter (in)
    4.3
  • Anti-Lock Brakes
    Not Available
  • Linked Brake System Front to Rear
    Not Available
• Color options

  add remove
  • Gray
  • White
