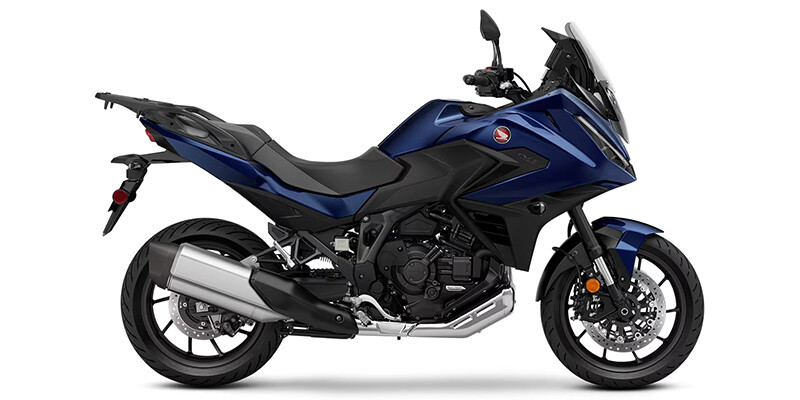

2025 NT1100 DCT

Specifications

• ENGINE

  add remove
  • Engine Type
    Parallel Twin
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    8
  • Valves Per Cylinder
    4
  • Valve Configuration
    SOHC
  • Bore (in)
    3.62
  • Stroke (in)
    3.21
  • Displacement (cc)
    1084
  • Carburetion Type
    Fuel Injected
  • Turbocharged
    No
  • Supercharged
    No
  • Number Of Carburetors
    0
  • Engine Brand Name
    Honda
  • Compression Ratio
    10.5:1
• TRANSMISSION

  add remove
  • Transmission Type
    Manual / Automatic Clutch
  • Number Of Speeds
    6
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Wheelbase (in)
    60.4
  • Fuel Capacity (gal)
    5.4
  • Length (in)
    88.1
  • Width (in)
    33.9
  • Height (in)
    52.8
  • Ground Clearance (in)
    6.8
  • Wet Weight (lbs)
    547
• SUSPENSION

  add remove
  • Front Suspension Type
    Inverted Fork
  • Front Suspension Size (in)
    1.7
  • Front Travel (in)
    5.9
  • Front Adjustable Fork Pre-Load
    Yes
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Steering Damper
    No
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Suspension Material
    Steel
  • Rear Travel (in)
    5.9
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    1
  • Rear Suspension Brand Name
    Pro Link®
  • Air Adjustable
    No
  • Front Suspension Brand Name
    Showa®
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Chromed
    No
  • Tube / Tubeless
    Tubeless
  • Front Tire (Full Spec)
    Dunlop® Sportmax GPR-300: 120/70-17 (58W)
  • Rear Tire (Full Spec)
    Dunlop® Sportmax GPR-300: 180/55-17 (73W)
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Front Brake Diameter (in)
    12.2
  • Rear Brake Type
    Hydraulic Disc
  • Rear Brake Diameter (in)
    10.1
  • Anti-Lock Brakes
    Standard
  • Linked Brake System Front to Rear
    Standard
• Color options

  add remove
  • Pearl Hawkeye Blue
