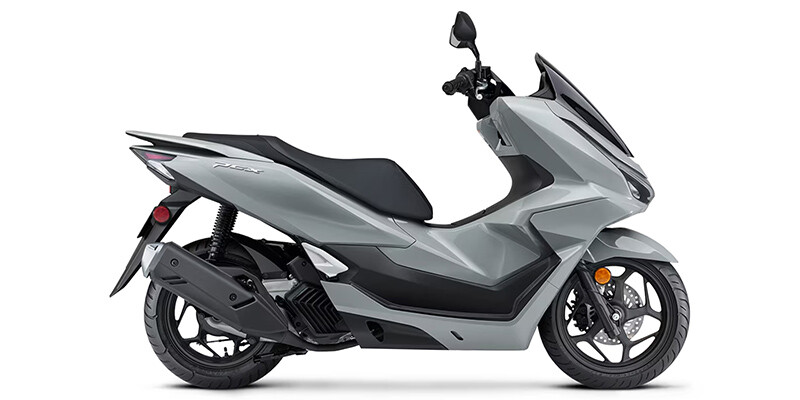

2025 PCX

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    4
  • Valves Per Cylinder
    4
  • Valve Configuration
    SOHC
  • Bore (in)
    2.36
  • Stroke (in)
    2.19
  • Displacement (cc)
    156.9
  • Carburetion Type
    Fuel Injected
  • Turbocharged
    No
  • Supercharged
    No
  • Compression Ratio
    12.0:1
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Reverse
    No
  • Transmission Brand
    V-Matic™
  • Primary Drive (Engine / Transmission)
    Belt
• TECHNICAL SPECIFICATIONS

  add remove
  • Wheelbase (in)
    51.7
  • Fuel Capacity (gal)
    2.1
  • Length (in)
    76.2
  • Width (in)
    28.9
  • Height (in)
    44.2
  • Ground Clearance (in)
    5.3
  • Wet Weight (lbs)
    291
• SUSPENSION

  add remove
  • Front Suspension Type
    Telescopic Fork
  • Front Suspension Size (in)
    1.2
  • Front Travel (in)
    3.9
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Steering Damper
    No
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Travel (in)
    3.7
  • Rear Adjustable Shock / Spring Pre-Load
    No
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    2
  • Air Adjustable
    No
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Chromed
    No
  • Front Tire (Full Spec)
    Michelin® City Grip: 110/70-14
  • Rear Tire (Full Spec)
    Michelin® City Grip: 130/70-13
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Hydraulic Disc
  • Front Brake Diameter (in)
    8.7
  • Rear Brake Type
    Drum
  • Anti-Lock Brakes
    Standard
  • Linked Brake System Front to Rear
    Not Available
• Color options

  add remove
  • Pearl Gray
