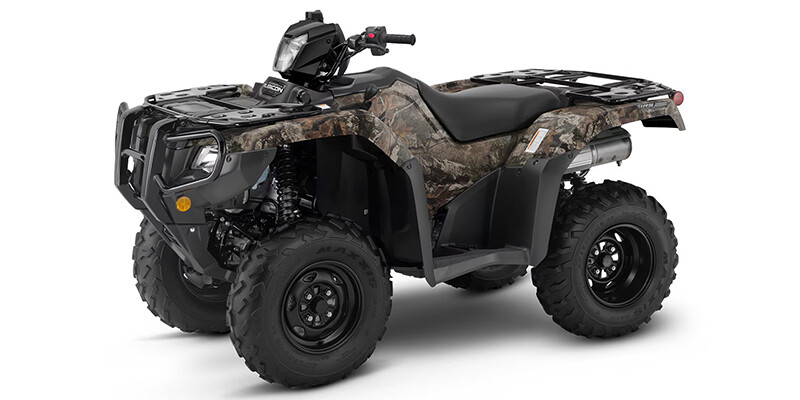

2025 FourTrax Foreman^® Rubicon 4x4 Automatic DCT EPS

Specifications

• Engine

  add remove
  • Engine Type
    Single-Cylinder
  • Engine
    Standard
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    4
  • Valves Per Cylinder
    4
  • Valve Configuration
    OHV
  • Bore (mm)
    96
  • Bore (in)
    3.78
  • Stroke (mm)
    71.5
  • Stroke (in)
    2.81
  • Displacement (cc)
    518
  • Displacement (ci)
    31.6
  • Fuel Type
    Gas
  • Carburetion
    Standard
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Number Of Carburetors
    0
  • Carburetion Type
    Fuel Injected
  • Parental Controls
    Not Available
  • Speed Governor
    No
  • Kill Switch / Tether Cord
    Not Available
  • Engine Block Heater
    Not Available
  • Fuel Injector Size (mm)
    36
  • Other Engine
    Not Available
  • Compression Ratio
    9.5:1
  • Starter
    Electric
• PRICING

  add remove
  • Price
    Standard
  • MSRP
    10299
  • MSRP + Destination
    10919
  • Currency
    US Dollars
  • Warranty (Months)
    12
  • Battery Warranty (Months)
    0
  • Warranty (Condition)
    Limited
  • Destination Charge
    620
• TRANSMISSION

  add remove
  • Transmission
    Standard
  • Transmission Type
    Manual / Automatic Clutch
  • Number Of Speeds
    5
  • Primary Drive (Rear Wheel)
    Shaft
  • Reverse
    Yes
  • Adjustable Throttle
    Not Available
  • Primary Drive (Front Wheel)
    Shaft
  • Primary Drive (Engine / Transmission)
    Gear
  • Other Transmission
    Not Available
• DRIVE LINE

  add remove
  • Driveline
    Standard
  • Driveline Type
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes
    3
  • Rear Unlocking Differential
    No
  • Limited Slip Differential
    Not Available
  • Differential Lock
    Standard
  • Driveline Brand
    TraxLok™
  • Differential Lock Location
    Front
  • Other Drive Line
    Not Available
• TECHNICAL SPECIFICATIONS

  add remove
  • Dimensions
    Standard
  • Length (mm)
    2184.4
  • Width (in)
    47.4
  • Width (mm)
    1204
  • Height (in)
    48.7
  • Height (mm)
    1237
  • Wheelbase (in)
    50.9
  • Wheelbase (mm)
    1293
  • Turning Radius (ft)
    11.5
  • Ground Clearance (in)
    9.7
  • Ground Clearance (mm)
    246.4
  • Weight
    Standard
  • Capacities
    Standard
  • Fuel Capacity (gal)
    3.9
  • Fuel Capacity (l)
    14.8
  • Fuel Capacity Reserve (gal)
    1.3
  • Fuel Capacity Reserve (l)
    4.9
  • Performance
    Standard
  • Towing Capacity (lbs)
    1322
  • Towing Capacity (kgs)
    599.7
  • Wet Weight (lbs)
    725
  • Wet Weight (kg)
    329
• SUSPENSION

  add remove
  • Front Suspension
    Standard
  • Front Suspension Type
    Independent Double Wishbone
  • Front Travel (in)
    7.3
  • Front Travel (mm)
    185.4
  • Front Adjustable Fork Pre-Load
    Yes
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Front Stabilizer Bar
    No
  • Steering Damper
    No
  • Rear Suspension
    Standard
  • Rear Suspension Type
    Independent Double A-Arm
  • Rear Suspension Material
    Steel
  • Rear Travel (in)
    8.5
  • Rear Travel (mm)
    215.9
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    2
  • Rear Stabilizer Bar
    No
  • Air Adjustable
    No
  • Other Suspension
    Not Available
• WHEELS & TIRES

  add remove
  • Wheels
    Standard
  • Wheels Composition
    Steel
  • Front Tire Diameter (in)
    25
  • Rear Tire Diameter (in)
    25
  • Tires
    Standard
  • Tire Brand
    Maxxis®
  • Front Tire Width
    8
  • Front Wheel Diameter
    12
  • Rear Tire Width
    10
  • Rear Wheel Diameter
    12
  • Front Tire (Full Spec)
    Maxxis® 25 x 8-12
  • Rear Tire (Full Spec)
    Maxxis® 25 x 10-12
  • Tire Chains
    Not Available
  • Spare Tire
    Not Available
  • Other Wheels & Tires
    Not Available
• BRAKES

  add remove
  • Brakes
    Standard
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Anti-Lock Brakes
    Not Available
  • Parking Brake
    Standard
  • Linked Brake System Front to Rear
    Not Available
  • Engine Braking
    Not Available
  • Regenerative Braking
    Not Available
  • Regenerative Deceleration
    Not Available
  • Front Brake Diameter (in)
    7.5
  • Front Brake Diameter (mm)
    190
  • Rear Brake Diameter (in)
    6.7
  • Rear Brake Diameter (mm)
    170
  • Other Brakes
    Not Available
• TOWING & HAULING

  add remove
  • Front Hitch
    Not Available
  • Rear Hitch
    Standard
  • Draw Bar
    Not Available
  • Tow Hook
    Not Available
  • Trailer
    Not Available
  • Winch
    Optional
  • Roller Fairlead
    Optional
  • Rear Hitch Type
    Standard
  • Tilt
    No
  • Removable Tailgate
    No
  • Removable Sides
    No
  • Other Towing & Hauling
    Not Available
• SEATS

  add remove
  • Seat
    Standard
  • Seat Type
    One-Piece
  • Seat Location
    Driver
  • Seat Material
    Vinyl
  • Seat Specifications
    Standard
  • Seat Height (in)
    36.3
  • Seat Height (mm)
    922
  • Number Of Seats
    1
  • Detachable Passenger Seat
    Not Available
  • Seat Backrest
    Not Available
  • Grab Rail or Strap
    Not Available
  • Heated Seat
    Not Available
  • Backrest Logo Plate
    No
  • Lumbar Adjustment
    No
  • Other Seat
    Not Available
• Color options

  add remove
  • TrueTimber® Atera Camo
  • Hero Red
