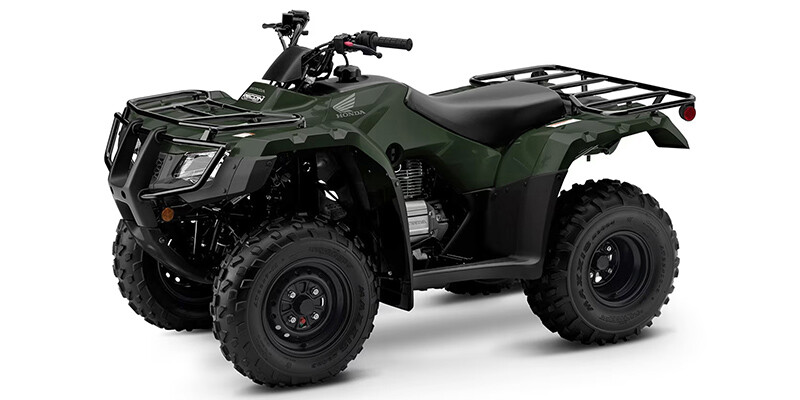

2025 FourTrax Recon® ES

2025 FourTrax Recon® ES

Description

Starting strong has never been easier. The FourTrax Recon delivers unmatched value with its 250-class engine, superior maneuverability, and exceptional quality. Whether you prefer the standard foot-shift or the Electric Shift Program (ESP) of the ES model, the Recon outperforms bulkier, pricier models, making every ride efficient and every task a breeze.

Specifications

  • Engine
    add remove
    • Engine Type
      Single-Cylinder
    • Engine
      Standard
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Cooling
      Air
    • Valves
      2
    • Valves Per Cylinder
      2
    • Valve Configuration
      OHV
    • Bore (mm)
      68.5
    • Bore (in)
      2.7
    • Stroke (mm)
      62.2
    • Stroke (in)
      2.45
    • Displacement (cc)
      229
    • Displacement (ci)
      14
    • Fuel Type
      Gas
    • Fuel Requirements
      Regular
    • Carburetion
      Standard
    • Fuel Injector
      No
    • Carburetor
      Yes
    • Number Of Carburetors
      1
    • Carburetor Size (mm)
      22
    • Carburetion Type
      Carburetor
    • Parental Controls
      Not Available
    • Speed Governor
      No
    • Kill Switch / Tether Cord
      Not Available
    • Snorkel Air Intake
      Standard
    • Engine Block Heater
      Not Available
    • Other Engine
      Not Available
    • Compression Ratio
      9.2:1
    • Starter
      Electric / Pull
  • PRICING
    add remove
    • Price
      Standard
    • MSRP
      5049
    • MSRP + Destination
      5469
    • Currency
      US Dollars
    • Warranty (Months)
      12
    • Battery Warranty (Months)
      0
    • Warranty (Condition)
      Limited
    • Destination Charge
      420
  • TRANSMISSION
    add remove
    • Transmission
      Standard
    • Transmission Type
      Manual / Automatic Clutch
    • Number Of Speeds
      5
    • Primary Drive (Rear Wheel)
      Shaft
    • Reverse
      Yes
    • Adjustable Throttle
      Not Available
    • Other Transmission
      Not Available
  • DRIVE LINE
    add remove
    • Driveline
      Standard
    • Driveline Type
      4X2
    • Number Of Driveline Modes
      1
    • Rear Unlocking Differential
      No
    • Limited Slip Differential
      Not Available
    • Differential Lock
      Not Available
    • Other Drive Line
      Not Available
  • TECHNICAL SPECIFICATIONS
    add remove
    • Dimensions
      Standard
    • Length (mm)
      1905
    • Width (in)
      40.7
    • Width (mm)
      1033.8
    • Height (in)
      42.1
    • Height (mm)
      1069.3
    • Wheelbase (in)
      44.5
    • Wheelbase (mm)
      1130.3
    • Turning Radius (ft)
      8.5
    • Ground Clearance (in)
      6
    • Ground Clearance (mm)
      152.4
    • Weight
      Standard
    • Capacities
      Standard
    • Fuel Capacity (gal)
      2.4
    • Fuel Capacity (l)
      9.1
    • Fuel Capacity Reserve (gal)
      0.6
    • Fuel Capacity Reserve (l)
      2.3
    • Performance
      Standard
    • Towing Capacity (lbs)
      500
    • Towing Capacity (kgs)
      226.8
    • GVWR (lbs)
      816
    • GVWR (kgs)
      370.1
    • Wet Weight (lbs)
      443
    • Wet Weight (kg)
      201
  • SUSPENSION
    add remove
    • Front Suspension
      Standard
    • Front Suspension Type
      Independent Double Wishbone
    • Front Travel (in)
      5.1
    • Front Travel (mm)
      129.5
    • Front Adjustable Fork Pre-Load
      No
    • Front Adjustable Rebound Damping
      No
    • Front Central Suspension Strut
      No
    • Front Stabilizer Bar
      No
    • Steering Damper
      No
    • Rear Suspension
      Standard
    • Rear Suspension Type
      Swing Arm
    • Rear Suspension Material
      Steel
    • Rear Travel (in)
      4.9
    • Rear Travel (mm)
      124.5
    • Rear Adjustable Shock / Spring Pre-Load
      No
    • Rear Adjustable Rebound Damping
      No
    • Number Rear Shock Absorbers
      1
    • Rear Stabilizer Bar
      No
    • Air Adjustable
      No
    • Other Suspension
      Not Available
  • WHEELS & TIRES
    add remove
    • Wheels
      Standard
    • Wheels Composition
      Steel
    • Chromed
      No
    • Front Tire Diameter (in)
      22
    • Rear Tire Diameter (in)
      22
    • Tires
      Standard
    • Tire Brand
      Maxxis®
    • Front Tire Width
      7
    • Front Wheel Diameter
      11
    • Rear Tire Width
      10
    • Rear Wheel Diameter
      9
    • Front Tire (Full Spec)
      Maxxis® 22 x 7-11
    • Rear Tire (Full Spec)
      Maxxis® 22 x 10-9
    • Tire Chains
      Not Available
    • Spare Tire
      Not Available
    • Other Wheels & Tires
      Not Available
  • BRAKES
    add remove
    • Brakes
      Standard
    • Front Brake Type
      Dual Sealed Hydraulic Drum
    • Rear Brake Type
      Sealed Drum
    • Anti-Lock Brakes
      Not Available
    • Parking Brake
      Standard
    • Linked Brake System Front to Rear
      Not Available
    • Engine Braking
      Standard
    • Regenerative Braking
      Not Available
    • Regenerative Deceleration
      Not Available
    • Front Brake Diameter (in)
      5.1
    • Front Brake Diameter (mm)
      130
    • Rear Brake Diameter (in)
      5.5
    • Rear Brake Diameter (mm)
      140
    • Other Brakes
      Not Available
  • TOWING & HAULING
    add remove
    • Front Hitch
      Not Available
    • Rear Hitch
      Optional
    • Draw Bar
      Not Available
    • Tow Hook
      Not Available
    • Trailer
      Not Available
    • Winch
      Not Available
    • Roller Fairlead
      Not Available
    • Tilt
      No
    • Removable Tailgate
      No
    • Removable Sides
      No
    • Other Towing & Hauling
      Not Available
  • SEATS
    add remove
    • Seat
      Standard
    • Seat Type
      One-Piece
    • Seat Location
      Driver
    • Seat Material
      Vinyl
    • Seat Specifications
      Standard
    • Seat Height (in)
      31.2
    • Seat Height (mm)
      792.5
    • Number Of Seats
      1
    • Detachable Passenger Seat
      Not Available
    • Seat Backrest
      Not Available
    • Grab Rail or Strap
      Not Available
    • Heated Seat
      Not Available
    • Backrest Logo Plate
      No
    • Lumbar Adjustment
      No
    • Other Seat
      Not Available
  • Color options
    add remove
    • Black Forest Green
    • Hero Red
