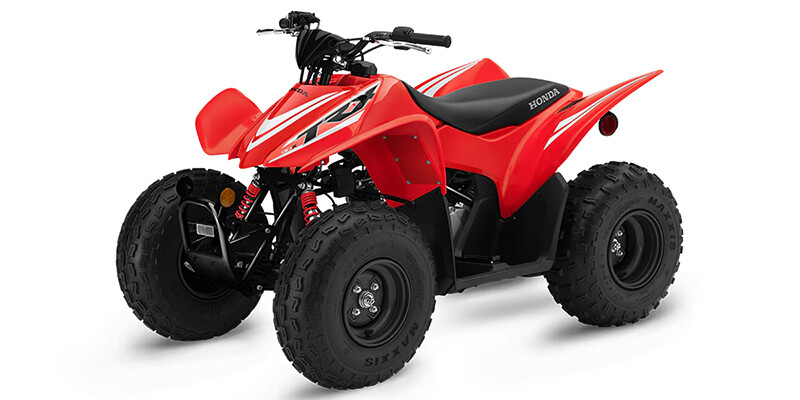

2025 TRX90X

Specifications

• Engine

  add remove
  • Engine Type
    Single-Cylinder
  • Engine
    Standard
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Air
  • Valves
    2
  • Valves Per Cylinder
    2
  • Valve Configuration
    SOHC
  • Bore (mm)
    47
  • Bore (in)
    1.85
  • Stroke (mm)
    49.5
  • Stroke (in)
    1.95
  • Displacement (cc)
    86
  • Displacement (ci)
    5.2
  • Fuel Type
    Gas
  • Fuel Requirements
    Regular
  • Carburetion
    Standard
  • Fuel Injector
    No
  • Carburetor
    Yes
  • Number Of Carburetors
    1
  • Carburetor Size (mm)
    15
  • Carburetion Type
    Carburetor
  • Parental Controls
    Standard
  • Speed Governor
    Yes
  • Kill Switch / Tether Cord
    Not Available
  • Snorkel Air Intake
    Not Available
  • Engine Block Heater
    Not Available
  • Other Engine
    Not Available
  • Compression Ratio
    9.2:1
  • Starter
    Electric
• PRICING

  add remove
  • Price
    Standard
  • MSRP
    3449
  • MSRP + Destination
    3599
  • Currency
    US Dollars
  • Warranty (Months)
    12
  • Battery Warranty (Months)
    0
  • Warranty (Condition)
    Limited
  • Destination Charge
    150
• TRANSMISSION

  add remove
  • Transmission
    Standard
  • Transmission Type
    Manual / Automatic Clutch
  • Number Of Speeds
    4
  • Primary Drive (Rear Wheel)
    Chain
  • Reverse
    No
  • Adjustable Throttle
    Standard
  • Other Transmission
    Not Available
• DRIVE LINE

  add remove
  • Driveline
    Standard
  • Driveline Type
    4X2
  • Number Of Driveline Modes
    1
  • Rear Unlocking Differential
    No
  • Rear Solid Axle
    Yes
  • Limited Slip Differential
    Not Available
  • Differential Lock
    Not Available
  • Other Drive Line
    Not Available
• TECHNICAL SPECIFICATIONS

  add remove
  • Dimensions
    Standard
  • Length (mm)
    1488.4
  • Width (in)
    35.2
  • Width (mm)
    894.1
  • Height (in)
    36.5
  • Height (mm)
    927.1
  • Wheelbase (in)
    38.7
  • Wheelbase (mm)
    983
  • Turning Radius (ft)
    8.3
  • Ground Clearance (in)
    3.9
  • Ground Clearance (mm)
    99.1
  • Weight
    Standard
  • Capacities
    Standard
  • Fuel Capacity (gal)
    1.7
  • Fuel Capacity (l)
    6.4
  • Fuel Capacity Reserve (gal)
    0.3
  • Fuel Capacity Reserve (l)
    1.1
  • Performance
    Standard
  • Wet Weight (lbs)
    262
  • Wet Weight (kg)
    118.8
• SUSPENSION

  add remove
  • Front Suspension
    Standard
  • Front Suspension Type
    Independent
  • Front Travel (in)
    2.6
  • Front Travel (mm)
    66
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Front Stabilizer Bar
    No
  • Steering Damper
    No
  • Rear Suspension
    Standard
  • Rear Suspension Type
    Swing Arm
  • Rear Suspension Material
    Steel
  • Rear Travel (in)
    2.6
  • Rear Travel (mm)
    66
  • Rear Adjustable Shock / Spring Pre-Load
    No
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    1
  • Rear Stabilizer Bar
    No
  • Air Adjustable
    No
  • Other Suspension
    Not Available
• WHEELS & TIRES

  add remove
  • Wheels
    Standard
  • Wheels Composition
    Aluminum
  • Front Tire Diameter (in)
    20
  • Rear Tire Diameter (in)
    19
  • Tires
    Standard
  • Tire Brand
    Maxxis®
  • Front Tire Width
    7
  • Front Wheel Diameter
    8
  • Rear Tire Width
    8
  • Rear Wheel Diameter
    8
  • Front Tire (Full Spec)
    Maxxis® 20 x 7-8
  • Rear Tire (Full Spec)
    Maxxis® 19 x 8-8
  • Tire Chains
    Not Available
  • Spare Tire
    Not Available
  • Other Wheels & Tires
    Not Available
• BRAKES

  add remove
  • Brakes
    Standard
  • Front Brake Type
    Dual Sealed Drum
  • Rear Brake Type
    Sealed Drum
  • Anti-Lock Brakes
    Not Available
  • Parking Brake
    Standard
  • Linked Brake System Front to Rear
    Not Available
  • Engine Braking
    Not Available
  • Regenerative Braking
    Not Available
  • Regenerative Deceleration
    Not Available
  • Front Brake Diameter (in)
    4.3
  • Front Brake Diameter (mm)
    110
  • Rear Brake Diameter (in)
    5.5
  • Rear Brake Diameter (mm)
    140
  • Other Brakes
    Not Available
• TOWING & HAULING

  add remove
  • Front Hitch
    Not Available
  • Rear Hitch
    Not Available
  • Draw Bar
    Not Available
  • Tow Hook
    Not Available
  • Trailer
    Not Available
  • Winch
    Not Available
  • Roller Fairlead
    Not Available
  • Tilt
    No
  • Removable Tailgate
    No
  • Removable Sides
    No
  • Other Towing & Hauling
    Not Available
• SEATS

  add remove
  • Seat
    Standard
  • Seat Type
    One-Piece
  • Seat Location
    Driver
  • Seat Material
    Vinyl
  • Seat Specifications
    Standard
  • Seat Height (in)
    26
  • Seat Height (mm)
    660.4
  • Number Of Seats
    1
  • Detachable Passenger Seat
    Not Available
  • Seat Backrest
    Not Available
  • Grab Rail or Strap
    Not Available
  • Heated Seat
    Not Available
  • Backrest Logo Plate
    No
  • Lumbar Adjustment
    No
  • Other Seat
    Not Available
• Color options

  add remove
  • Red
