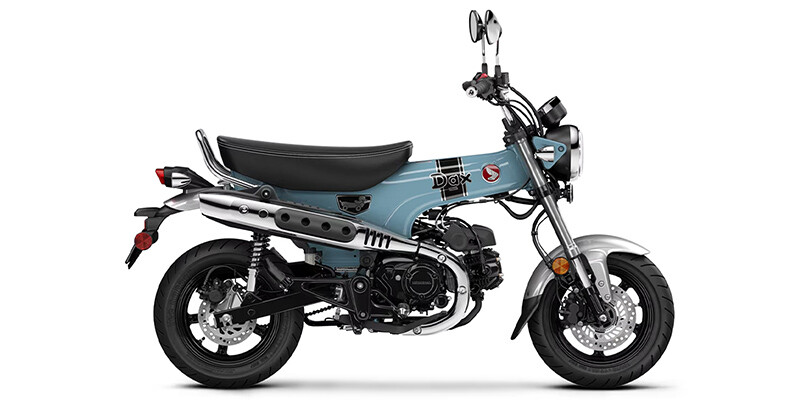

2025 Dax 125

2025 Dax 125

Description

In the 1970s', the Dax (aka the CT70/Trail 70) was one of our most popular models. And now it’s back, and more fun than ever. That’s thanks to its bigger engine (the same family as in our Grom, Monkey, and Trail125), fuel injection, disc brakes, and electric starting. And with room for two, you can share the fun!

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Cooling
      Air
    • Valves
      2
    • Valves Per Cylinder
      2
    • Valve Configuration
      SOHC
    • Bore (in)
      1.97
    • Stroke (in)
      2.48
    • Displacement (cc)
      124
    • Carburetion Type
      Fuel Injected
    • Turbocharged
      No
    • Supercharged
      No
    • Number Of Carburetors
      0
    • US Miles Per Gallon (Combined)
      106.7
    • Compression Ratio
      10.0:1
  • TRANSMISSION
    add remove
    • Transmission Type
      Manual / Automatic Clutch
    • Number Of Speeds
      4
    • Primary Drive (Rear Wheel)
      Chain
    • Reverse
      No
  • TECHNICAL SPECIFICATIONS
    add remove
    • Wheelbase (in)
      47.2
    • Fuel Capacity (gal)
      1
    • Length (in)
      75.2
    • Width (in)
      30
    • Height (in)
      40.1
    • Ground Clearance (in)
      7
    • Wet Weight (lbs)
      236
  • SUSPENSION
    add remove
    • Front Suspension Type
      Inverted Fork
    • Front Suspension Size (in)
      1.2
    • Front Travel (in)
      4.3
    • Front Adjustable Fork Pre-Load
      No
    • Front Adjustable Rebound Damping
      No
    • Front Central Suspension Strut
      No
    • Steering Damper
      No
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Rear Suspension Material
      Steel
    • Rear Travel (in)
      4.7
    • Rear Adjustable Shock / Spring Pre-Load
      No
    • Rear Adjustable Rebound Damping
      No
    • Number Rear Shock Absorbers
      2
    • Air Adjustable
      No
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Aluminum
    • Chromed
      No
    • Tube / Tubeless
      Tubeless
    • Front Tire (Full Spec)
      Vee Rubber: 120/70-12
    • Rear Tire (Full Spec)
      Vee Rubber: 130/70-12
    • Spare Tire
      Not Available
  • BRAKES
    add remove
    • Front Brake Type
      Hydraulic Disc
    • Front Brake Diameter (in)
      8.7
    • Rear Brake Type
      Drum
    • Rear Brake Diameter (in)
      4.3
    • Anti-Lock Brakes
      Standard
    • Linked Brake System Front to Rear
      Not Available
  • Color options
    add remove
    • Pearl Gray
    • Pearl Glittering Blue
