‹ Home › Inventory › DAX125AS 2025 Dax 125

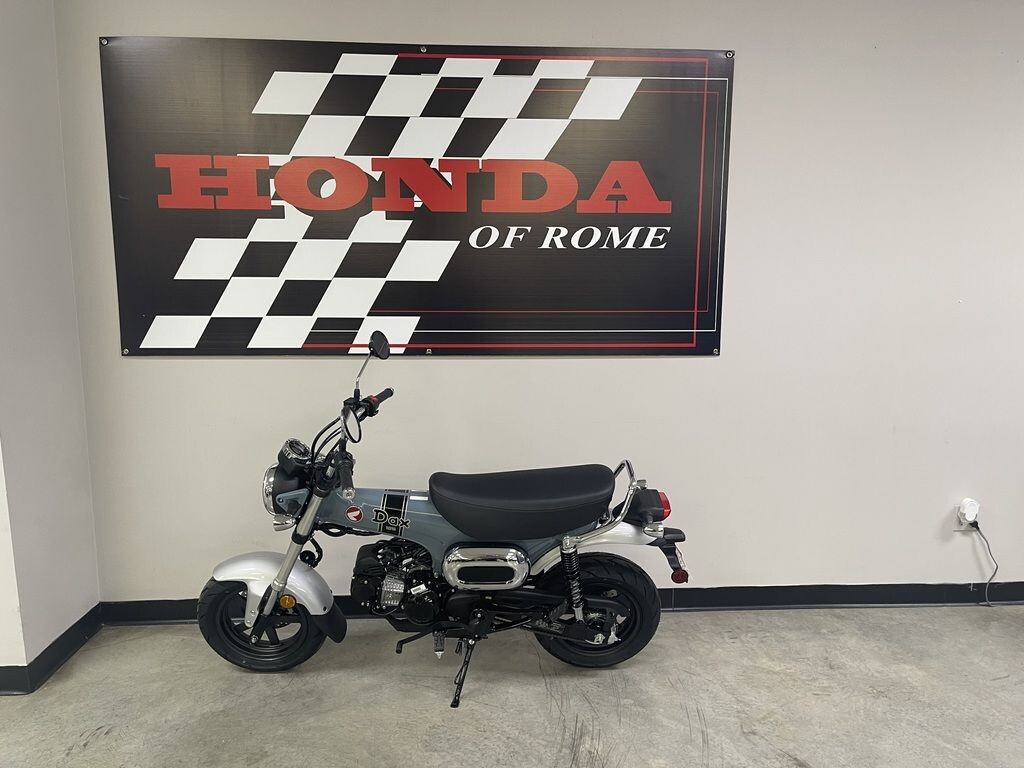

2025 Honda® Dax 125 Off-the-leash fun In the 1970s', the Dax (aka the CT70/Trail 70) was one of our most popular models. And now it’s back, and more fun than ever. That’s thanks to its bigger engine (the same family as in our Grom, Monkey, and Trail125), fuel injection, disc brakes, and electric starting. And with room for two, you can share the fun! Features may include: Upswept exhaust The high exhaust system pays homage to the original trailbike roots, but is super practical too and contributes to the wide powerband. Round LED headlight The round headlight may have a retro look, but it provides excellent visibility and illumination with its updated LED performance. Twin rear shocks Twin rear shocks keep the retro vibe strong. Along with the fat 12-inch tires, they give you a smooth ride too, even over gnarly pavement.

Specifications

ENGINE

add remove
- Engine Type:

  Single-Cylinder
- Cylinders:

  1
- Engine Stroke:

  4-Stroke
- Cooling:

  Air
- Valves:

  2
- Valves Per Cylinder:

  2
- Valve Configuration:

  SOHC
- Bore (in):

  1.97
- Stroke (in):

  2.48
- Displacement (cc):

  124
- Carburetion Type:

  Fuel Injected
- Turbocharged:

  No
- Supercharged:

  No
- US Miles Per Gallon (Combined):

  106.7
- Compression Ratio:

  10.0:1
TRANSMISSION

add remove
- Transmission Type:

  Manual / Automatic Clutch
- Number Of Speeds:

  4
- Primary Drive (Rear Wheel):

  Chain
- Reverse:

  No
TECHNICAL SPECIFICATIONS

add remove
- Wheelbase (in):

  47.2
- Fuel Capacity (gal):

  1
- Length (in):

  75.2
- Width (in):

  30
- Height (in):

  40.1
- Ground Clearance (in):

  7
- Wet Weight (lbs):

  236
SUSPENSION

add remove
- Front Suspension Type:

  Inverted Fork
- Front Suspension Size (in):

  1.2
- Front Travel (in):

  4.3
- Front Adjustable Fork Pre-Load:

  No
- Front Adjustable Rebound Damping:

  No
- Front Central Suspension Strut:

  No
- Steering Damper:

  No
- Rear Suspension Type:

  Twin Sided Swing Arm
- Rear Suspension Material:

  Steel
- Rear Travel (in):

  4.7
- Rear Adjustable Shock / Spring Pre-Load:

  No
- Rear Adjustable Rebound Damping:

  No
- Number Rear Shock Absorbers:

  2
- Air Adjustable:

  No
WHEELS & TIRES

add remove
- Wheels Composition:

  Aluminum
- Chromed:

  No
- Tube / Tubeless:

  Tubeless
- Front Tire (Full Spec):

  Vee Rubber: 120/70-12
- Rear Tire (Full Spec):

  Vee Rubber: 130/70-12
- Spare Tire:

  Not Available
BRAKES

add remove
- Front Brake Type:

  Hydraulic Disc
- Front Brake Diameter (in):

  8.7
- Rear Brake Type:

  Drum
- Rear Brake Diameter (in):

  4.3
- Anti-Lock Brakes:

  Standard
- Linked Brake System Front to Rear:

  Not Available
